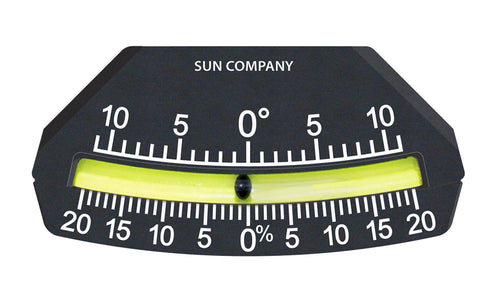

The Lev-o-gage™ is a larger unit (5.85" wide) that features a dual scale with a single glass tube. The scale displays a range of -11 to +11 angular degrees as well as -20% to +20% slope. The engraved and hand painted numerals and hashmarks are extremely durable in harsh conditions. It features a high-visibility Saturn Yellow tube assembly with special damping fluid that works down to -40 degrees F/-40 degrees C. Fully-enclosed housing protects glass tube assembly. 3M brand VHB (Very High Bond) adhesive foam tape is included on the back for easy mounting.
MADE IN THE USA!
See below for more details and specifications.
Product Details & Specifications
Details
- Range: -20 to +20 percent slope and -11 to +11 angular degrees.
- Engraved and hand-painted numerals and hashmarks are extremely durable.
- Special damping fluid works down to -40 degrees F/-40 degrees C.
- High-visibility Saturn Yellow tube assembly.
- Fully enclosed housing protects tube assembly.
- 3M brand VHB (Very High Bond) adhesive foam tape on back for easy mounting.
- Pyrex brand borosilicate glass tube assembly.
- High-contrast black indicator ball.
- Assembled in USA.
Specifications
- Part Number: 1112-I
- Angular Range: -11° to 11° and -20 to 20%
- Temperature Range: -40° to 125° F
- Dimensions: 5.85" W x 2.90" H x 0.50" D (14.9cm W x 7.4cm H x 1.3cm D)
- Weight: 2.8 oz / 80g
- Angular Tolerance: ±1.0°, ±1.8%
- Resolution: 1° and 1%
